Task 2 — HPL Benchmark | EdgeGuard SS2026

What is HPL?

HPL (High Performance LINPACK) is the industry-standard benchmark used to rank the TOP500 supercomputers worldwide. It measures how fast a system can solve a dense system of linear equations using LU factorization with partial pivoting. The result is reported in GFLOPS (billions of floating-point operations per second) — higher is better.

We used the HPCC 1.5.0 package which includes HPL alongside other benchmarks. All compute ran exclusively on the 8× Pi3 nodes (32 cores total). The Pi5 master node was excluded from compute — it runs production services simultaneously (k3s, inference, PostgreSQL, MinIO, Prometheus).

Test Setup

Tool

HPCC 1.5.0

Binary: /usr/bin/hpcc

Block Size (NB)

128

Optimal for ARM Cortex-A53

Processes/Node

4

One per physical core

Cooldown

60s

Between runs for thermal recovery

Runs per Config

4–5

Min/max/mean reported

Nodes Used

Pi3 only

Pi5 excluded from compute

Problem Size (N) — Why These Values?

HPL performance scales with problem size — a larger N means more compute per communication event, which improves efficiency. However N is constrained by available RAM: the matrix requires N² × 8 bytes of memory distributed across all MPI processes.

We used the following formula to select the largest N that fits safely in RAM without triggering swap:

formulaN selection formula

N = sqrt(0.7 × num_nodes × available_RAM_per_node / 8)

Where:
  0.7       = safety factor (use only 70% of RAM, leave room for OS)
  num_nodes = number of Pi3 nodes participating
  600 MB    = safe usable RAM per Pi3 (out of 1024MB total)
  8         = bytes per double-precision float

Example: 4 cores (1 node)
N = sqrt(0.7 × 1 × 600MB / 8) = sqrt(52,500,000) ≈ 7,245
Rounded down to N=6000 to stay well within limits.

⚠️ Why not use the maximum N?

We initially tested N=7000 at 4 cores — this caused memory swap on pi3-01, degrading performance significantly. We reduced to N=6000 which fits cleanly within available RAM. Similarly, N=11000 at 16 cores caused pi3-01 to crash due to combined memory pressure and power instability on pi3-02. Reduced to N=10000 which ran stably.

Cores	Nodes	N	P×Q Grid	Matrix Size	Notes
1	1	5,000	1×1	~190 MB	Safe — fits in 1GB
2	1	5,500	1×2	~230 MB	Safe — same node
4	1	6,000	2×2	~274 MB	Reduced from 7000 (swap at pi3-01)
8	2	8,000	2×4	~244 MB/node	pi3-02 excluded (power instability)
16	4	10,000	4×4	~190 MB/node	Reduced from 11000 (crash at pi3-01)
24	6	13,000	4×6	~222 MB/node	Stable — no issues
32	8	15,000	4×8	~222 MB/node	Includes pi3-02 (load distributed)

❌ Memory Swap / Crash Events During Testing

N=7000, 4 cores (pi3-01): Memory swap detected — performance degraded badly. Reduced to N=6000.

N=11000, 16 cores: pi3-01 ran out of memory and crashed mid-run (SSH connection refused). Combined effect of pi3-02 power instability and memory pressure. Reduced to N=10000 which ran stably with 4 valid runs.

N≥8000, 8 cores with pi3-02: pi3-02 spontaneously rebooted under sustained HPL load — confirmed as power supply limitation. Node excluded from 8 and 16 core configurations.

Node Order

Pi3-02 was placed last in the node order due to power instability under sustained HPL load. It is only used at 32 cores where the load is distributed across all 8 nodes.

textMPI node order

pi3-01 → pi3-03 → pi3-04 → pi3-05 → pi3-06 → pi3-07 → pi3-08 → pi3-02 (last)

How to Reproduce

Before running, stop k3s-agent on all Pi3 nodes and ensure the correct hpccinf.txt is copied to all participating nodes.

bashStep 1 — Stop k3s-agent on all Pi3 nodes

for ip in 10.10.10.21 10.10.10.22 10.10.10.23 10.10.10.24 \
          10.10.10.25 10.10.10.26 10.10.10.27 10.10.10.28; do
    ssh admin@$ip "sudo systemctl stop k3s-agent" &
done
wait

bashStep 2 — Create hostfile for your core count

# Replace <CORES> with: 1, 2, 4, 8, 16, 24, or 32
python3 -c "
cores = <CORES>
nodes = ['pi3-01','pi3-03','pi3-04','pi3-05','pi3-06','pi3-07','pi3-08','pi3-02']
remaining = cores
for n in nodes:
    if remaining <= 0: break
    slots = min(4, remaining)
    print(f'{n} slots={slots}')
    remaining -= slots
" > /tmp/hpl_hostfile

bashStep 3 — Copy HPL config to all nodes

# hpccinf.txt files are in /nfs/shared/hpl-tests/
# Copy the correct config for your core count
for ip in <NODE_IPs>; do
    scp /nfs/shared/hpl-tests/HPL_<CORES>cores.dat \
        admin@$ip:~/hpccinf.txt &
done
wait

bashStep 4 — Run HPL and collect result

# Clear previous result
ssh admin@10.10.10.21 "rm -f ~/hpccoutf.txt"

# Run benchmark
cd /home/admin
mpirun -np <CORES> --hostfile /tmp/hpl_hostfile hpcc

# Fetch GFLOPS result (look for WR line)
ssh admin@10.10.10.21 "grep 'WR' ~/hpccoutf.txt | tail -1"

# Example output:
WR11C2R4    15000   128     4     8    421.72    1.156e+01
#                                                 ↑ GFLOPS

ℹ️ Result Location

HPL writes results to ~/hpccoutf.txt on the first MPI rank node (pi3-01). The WR line contains the GFLOPS result — the last number on that line.

Results Overview

Full interactive results with min/max/mean per configuration are available on the results page. Below is a summary with chart placeholders.

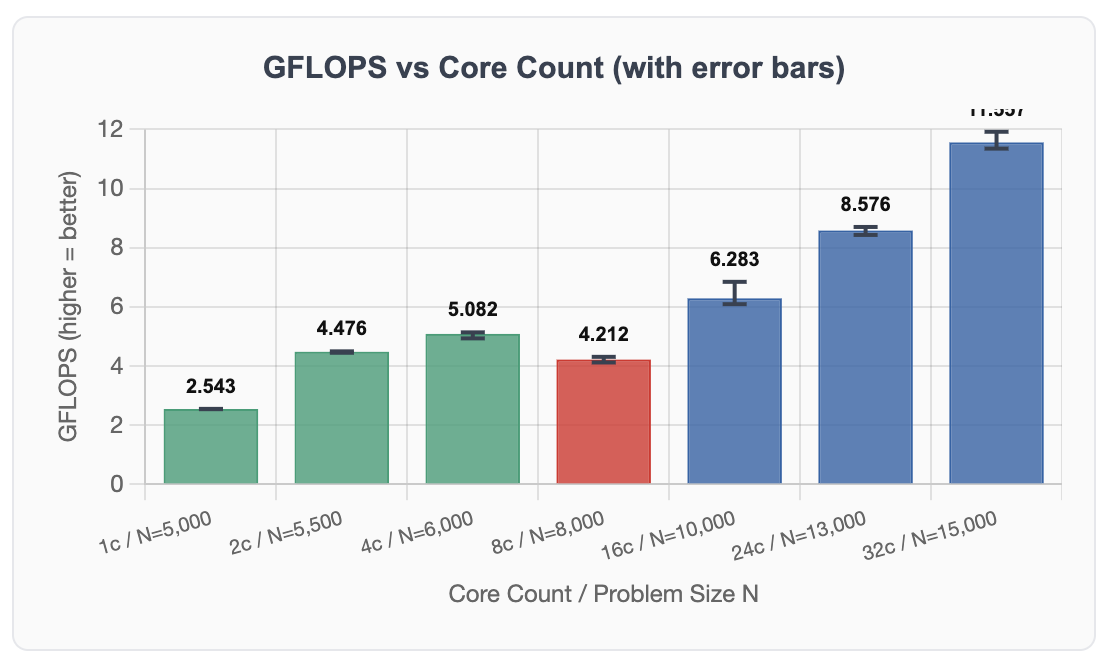

📊 hpl_gflops_bar_chart.png GFLOPS vs Core Count — Bar Chart (1 to 32 cores)

Figure 1 — HPL GFLOPS across 7 core counts. Note the dip at 8 cores due to inter-node communication overhead.

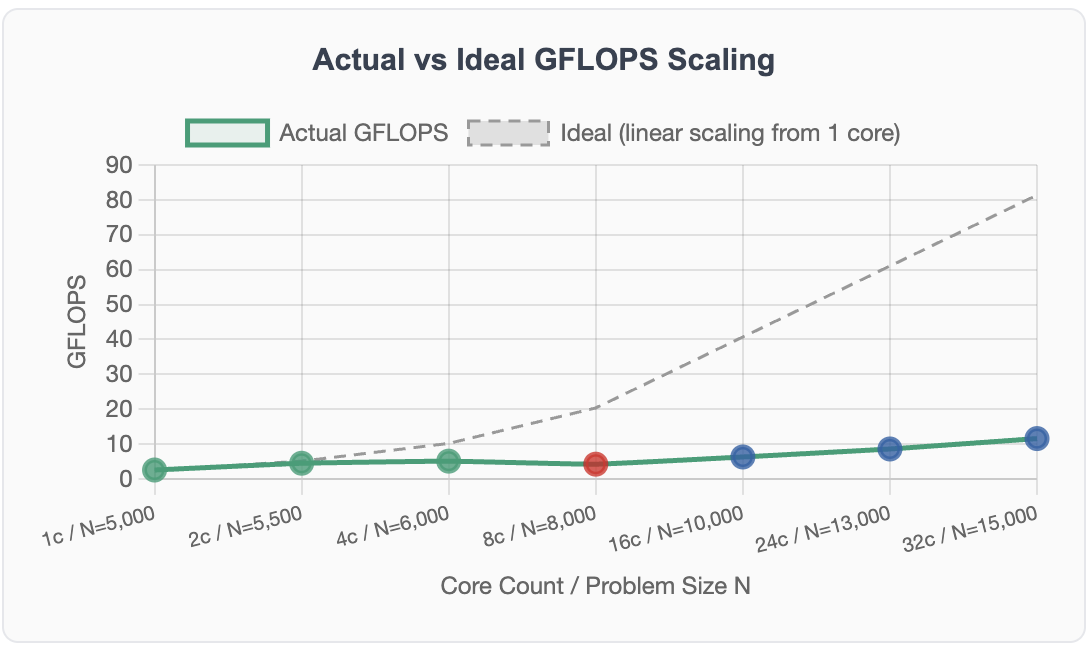

📈 hpl_efficiency_chart.png Actual GFLOPS vs Ideal Linear Scaling — Line Chart

Figure 2 — Actual GFLOPS vs ideal linear scaling. Shows communication bottleneck at 8 cores.

Key Findings

✅ Peak: 11.92 GFLOPS at 32 cores

Theoretical peak for 32× ARM Cortex-A53 at 1.4GHz = ~89.6 GFLOPS. Achieved efficiency: 13.3% — typical for ARM single-board computer clusters and consistent with Prof. Baun's published research on Pi clusters.

⚠️ Performance dip at 8 cores

GFLOPS drops from 5.082 (4 cores, 1 node) to 4.576 (8 cores, 2 nodes) when crossing the first node boundary. LU factorization requires constant inter-node row/column exchanges — the communication cost exceeds the benefit of additional cores at this problem size.

❌ Pi3-02 power instability

Pi3-02 spontaneously reboots under sustained HPL load with N≥8000. Confirmed as a power supply limitation. Mitigated by placing pi3-02 last in the node order — only participates at 32 cores.

🔍 Amdahl's Law visible at 8 cores

The dip at 8 cores demonstrates Amdahl's Law — the serial fraction (inter-node LU communication) dominates when first crossing a node boundary. Performance recovers at 16+ cores as larger N values increase the parallel fraction.
