Overview

The backend is the central nervous system of EdgeGuard. Every piece of data that flows through the system — camera alerts, benchmark results, user authentication, cluster status — passes through the Flask REST API. The React frontend talks exclusively to the backend; it never accesses the database or MinIO directly.

The backend is deployed as 2 replicas in k3s with pod anti-affinity rules ensuring they run on different Pi3 nodes. If one node crashes or a pod fails, the other replica continues serving requests while k3s automatically reschedules the failed pod on a healthy node. This gives genuine high availability — not just redundancy on paper.

ℹ️ Why Flask and not FastAPI or Django?

Flask was chosen for its simplicity and minimal overhead. Django brings too much built-in structure for a focused API server. FastAPI is excellent but adds async complexity. Flask gives full control with minimal boilerplate — ideal for a student project where every team member needs to understand and modify the code.

Tech Stack

API Framework

Flask

Python micro-framework. Handles HTTP routing, request parsing, and JSON responses. Lightweight and easy to extend.

Database

PostgreSQL

Production-grade relational database. Migrated from SQLite early in the project for concurrent write support and k3s compatibility.

Object Storage

MinIO

S3-compatible object store running on Pi5. Stores all alert snapshot images. Frontend fetches presigned URLs to display them.

Authentication

JWT

JSON Web Tokens for stateless authentication. Every protected API endpoint requires a valid JWT in the Authorization header.

Deployment

k3s + gunicorn

Flask runs under gunicorn (production WSGI server) inside a Docker container deployed as a k3s Deployment with 2 replicas.

Metrics Source

Prometheus HTTP API

Backend queries Prometheus directly for per-node CPU and RAM to serve the /api/system/status endpoint.

Database — PostgreSQL

Why We Migrated from SQLite to PostgreSQL

The backend started with SQLite — a simple file-based database that requires no server setup. It worked well in early development but hit two critical limitations when deployed in k3s:

❌ SQLite Problem 1 — No concurrent writes

SQLite uses file-level locking. When 2 Flask replicas try to write simultaneously (e.g. two alerts arriving at the same time), one write blocks or fails with "database is locked". In a high-availability setup with multiple replicas, this is unacceptable.

❌ SQLite Problem 2 — File path in k3s

SQLite stores data in a single file (e.g. edgeguard.db). In k3s, each pod gets its own filesystem — the two Flask replicas would each have their own separate database file with different data. Requests hitting replica 1 would not see data written by replica 2. The databases would diverge immediately.

✅ Solution: PostgreSQL as a k3s StatefulSet

PostgreSQL runs as a 3-replica StatefulSet in k3s with a shared persistent volume. Both Flask replicas connect to the same PostgreSQL service endpoint. PostgreSQL handles concurrent writes with proper locking, transactions, and replication. All data is consistent regardless of which Flask replica handles the request.

Database Schema

users

idINTEGER PK

usernameVARCHAR(80)

password_hashVARCHAR(256)

roleVARCHAR(20)

created_atTIMESTAMP

alerts

idINTEGER PK

event_typeVARCHAR(50)

confidenceFLOAT

camera_idVARCHAR(50)

image_urlTEXT

timestampTIMESTAMP

benchmarks

idINTEGER PK

benchmark_typeVARCHAR(50)

coresINTEGER

problem_sizeVARCHAR(20)

time_secondsFLOAT

created_atTIMESTAMP

bashCheck PostgreSQL is running in k3s

# Check PostgreSQL pods
kubectl get pods -A | grep postgres

# Check PostgreSQL service
kubectl get svc -A | grep postgres

# Connect to PostgreSQL directly
kubectl exec -it <postgres-pod-name> -- psql -U edgeguard -d edgeguard

# List all tables
\dt

# Count alerts
SELECT COUNT(*) FROM alerts;

API Endpoints

All endpoints return JSON. Protected endpoints require a JWT token in the header: Authorization: Bearer <token>

Authentication

Endpoint	Method	Description	Auth
/api/login	POST	Login with username + password. Returns JWT token valid for 24 hours.	No
/api/users	GET	List all users. Admin only.	JWT required
/api/users	POST	Create new user with username, password, role.	JWT required
/api/users/<id>	DELETE	Delete a user by ID.	JWT required

Alerts

Endpoint	Method	Description	Auth
/api/alerts	GET	List all alerts paginated. Supports ?page=<n>&limit=<n> query params. Returns alerts with image URLs from MinIO.	JWT required
/api/alerts	POST	Create new alert. Called by inference service when face_covered detected. Saves snapshot to MinIO, stores record in PostgreSQL, triggers Telegram notification.	JWT required
/api/alerts/<id>	GET	Get single alert by ID with full details and presigned MinIO image URL.	JWT required
/api/alerts/<id>	DELETE	Delete alert and its associated MinIO snapshot.	JWT required

System & Monitoring

Endpoint	Method	Description	Auth
/api/system/status	GET	Returns real-time per-node CPU, RAM, uptime, and online status. Queries Prometheus HTTP API internally. Powers the node health grid in the frontend.	JWT required
/api/stream	GET	Proxies the ZMQ video stream from Pi4 to frontend as MJPEG HTTP stream. Frontend displays this in the Live Camera page.	JWT required

Benchmarks

Endpoint	Method	Description	Auth
/api/benchmarks	GET	Returns all benchmark results (Monte Carlo Pi, Matrix Multiply, HPL, Task Distributor). Frontend Results page reads from this endpoint to render charts.	JWT required
/api/benchmarks	POST	Store new benchmark result. Called after each benchmark run to persist results to PostgreSQL.	JWT required
/api/povray-renders	GET	Lists Task Distributor image chunk files stored in MinIO per node count. Frontend displays individual rendered row-bands to visualize parallelism.	JWT required

bashExample — Login and use JWT token

# Step 1: Login to get JWT token
TOKEN=$(curl -s -X POST http://10.10.10.1:30800/api/login \
  -H "Content-Type: application/json" \
  -d '{"username":"admin","password":"your_password"}' \
  | python3 -c "import sys,json; print(json.load(sys.stdin)['token'])")

# Step 2: Use token to call protected endpoint
curl -H "Authorization: Bearer $TOKEN" \
  http://10.10.10.1:30800/api/system/status | python3 -m json.tool

# Step 3: Get alerts
curl -H "Authorization: Bearer $TOKEN" \
  http://10.10.10.1:30800/api/alerts?page=1&limit=10 | python3 -m json.tool

MinIO — Object Storage

MinIO is an S3-compatible object storage server running on Pi5. It stores all alert snapshot images — when the inference service detects a suspicious event, it captures a frame and uploads it to MinIO. The alert record in PostgreSQL stores the MinIO object key, not the image itself.

When the frontend requests an alert, the backend generates a presigned URL — a temporary URL (valid for 1 hour) that allows the browser to download the image directly from MinIO without needing authentication credentials. This keeps image serving fast and off the Flask process.

pythonHow backend stores and retrieves images from MinIO

from minio import Minio
import io

minio_client = Minio(
    "minio-service:9000",
    access_key="edgeguard",
    secret_key="your_secret",
    secure=False
)

# Save snapshot on alert detection
def save_snapshot(frame_bytes, alert_id):
    object_name = f"alerts/alert_{alert_id}.jpg"
    minio_client.put_object(
        "edgeguard-snapshots",
        object_name,
        io.BytesIO(frame_bytes),
        length=len(frame_bytes),
        content_type="image/jpeg"
    )
    return object_name

# Generate presigned URL for frontend to display image
def get_image_url(object_name):
    from datetime import timedelta
    url = minio_client.presigned_get_object(
        "edgeguard-snapshots",
        object_name,
        expires=timedelta(hours=1)
    )
    return url  # temporary URL valid for 1 hour

bashCheck MinIO is running and accessible

# Check MinIO pod
kubectl get pods -A | grep minio

# List all buckets using MinIO CLI (mc)
mc alias set local http://10.10.10.1:9000 edgeguard your_secret
mc ls local/

# Count alert snapshots
mc ls local/edgeguard-snapshots/alerts/ | wc -l

JWT Authentication

Every API endpoint (except /api/login) requires a valid JWT token. JWT (JSON Web Token) is a stateless authentication mechanism — the server does not store session data. Instead, the token itself contains the user identity and expiry time, signed with a secret key only the server knows.

pythonJWT authentication in Flask (simplified)

import jwt
from functools import wraps
from flask import request, jsonify
from datetime import datetime, timedelta

SECRET_KEY = "your_secret_key"

# Generate token on login
def generate_token(user_id):
    payload = {
        'user_id': user_id,
        'exp': datetime.utcnow() + timedelta(hours=24)
    }
    return jwt.encode(payload, SECRET_KEY, algorithm='HS256')

# Decorator to protect endpoints
def token_required(f):
    @wraps(f)
    def decorated(*args, **kwargs):
        token = request.headers.get('Authorization', '').replace('Bearer ', '')
        try:
            data = jwt.decode(token, SECRET_KEY, algorithms=['HS256'])
        except:
            return jsonify({'error': 'Invalid or expired token'}), 401
        return f(*args, **kwargs)
    return decorated

# Usage: protect any endpoint
@app.route('/api/alerts')
@token_required
def get_alerts():
    return jsonify(alerts)

High Availability — 2 Replicas with Anti-Affinity

Running a single Flask pod would mean any node failure or pod crash takes down the entire EdgeGuard backend. We deployed 2 replicas with pod anti-affinity rules — Kubernetes scheduling constraints that guarantee the two pods never land on the same physical node.

Load Balancer (k3s NodePort Service)
    │
    ├──────────────────────┐
    ▼                      ▼
Flask Replica 1      Flask Replica 2
(pi3-03)               (pi3-07)
    │                      │
    └──────────┬───────────┘
              ▼
PostgreSQL StatefulSet (Pi5)
Both replicas share the same database

yamlk3s Deployment — anti-affinity rule (key section)

spec:
  replicas: 2
  template:
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
          - labelSelector:
              matchExpressions:
              - key: app
                operator: In
                values:
                - edgeguard-backend
            topologyKey: "kubernetes.io/hostname"
            # ↑ This means: never put 2 backend pods on the same node

What Happens When a Node Crashes?

Event	What k3s does	Impact on users
Pi3-03 crashes (Replica 1 down)	k3s detects pod unhealthy, reschedules Replica 1 on another available Pi3	Zero downtime — Replica 2 continues serving
Both replicas crash simultaneously	k3s restarts both pods on available nodes	Brief downtime (~30s) until pods are Running again
PostgreSQL pod crashes	StatefulSet restarts PostgreSQL, data preserved on persistent volume	Brief DB unavailability — Flask returns 503 until DB recovers

bashCheck backend health

# Both backend pods should show Running on different nodes
kubectl get pods -A -o wide | grep backend

# Check backend service
kubectl get svc -A | grep backend

# Test backend is responding
curl http://10.10.10.1:30800/api/health

# View backend logs from both replicas
kubectl logs -l app=edgeguard-backend --all-containers

Screenshots

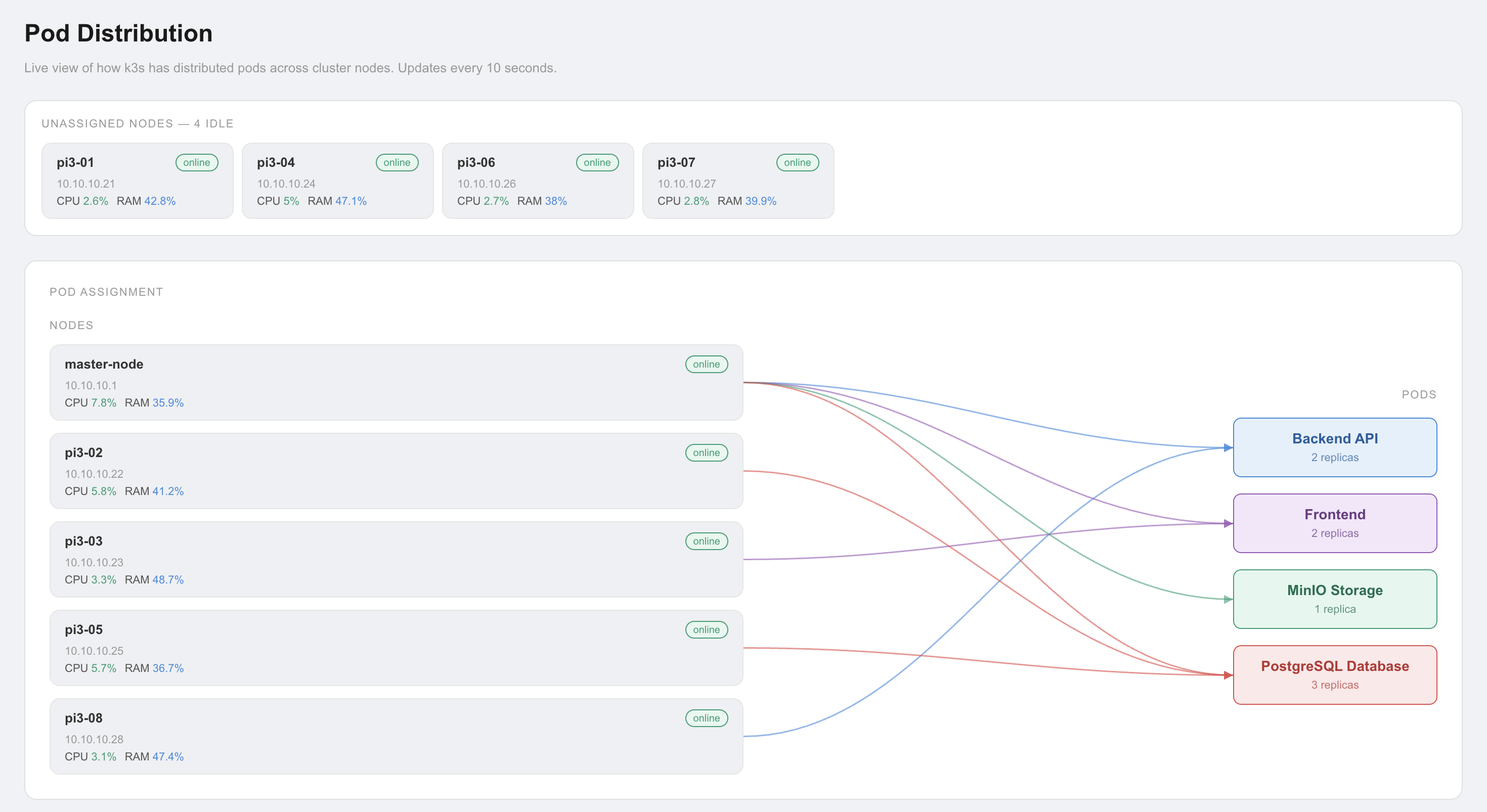

🖥️ backend_pods.png kubectl get pods showing 2 backend replicas on different nodes

Figure 1 — Two Flask replicas running on separate Pi3 nodes.

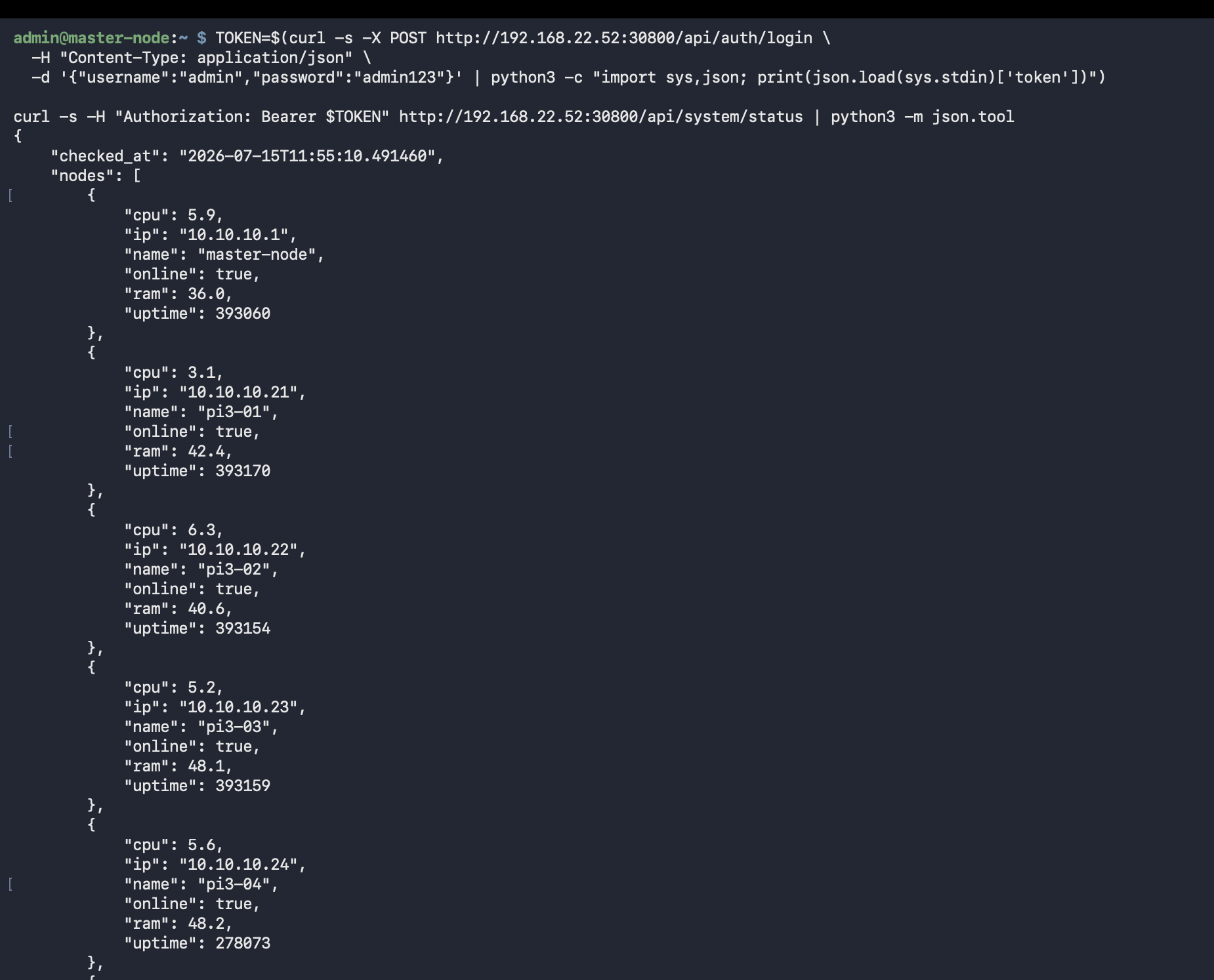

📡 api_response.png Example /api/system/status JSON response

Figure 2 — Backend /api/system/status response showing per-node metrics.

Key Findings

✅ High availability confirmed — survives node failure

Tested by manually stopping k3s-agent on the node running Replica 1. EdgeGuard frontend continued working without interruption — all requests were served by Replica 2 while k3s rescheduled Replica 1 on another node.

✅ PostgreSQL migration eliminated concurrent write failures

After migrating from SQLite, concurrent alert writes from the inference service and benchmark writes never conflict. PostgreSQL handles transaction isolation correctly across both Flask replicas.

⚠️ MinIO presigned URLs expire after 1 hour

Alert image URLs in the frontend expire after 1 hour. If a user keeps the Alerts page open for more than an hour, older images stop loading. A future improvement would be to regenerate presigned URLs on demand via a dedicated /api/alerts/<id>/image endpoint.

🔍 Why k3s and not plain Docker?

Docker alone provides containerization but no orchestration — you would manually restart crashed containers and manage networking yourself. k3s provides automatic restart, load balancing across replicas, persistent storage management, and health checks out of the box. This is what separates a student project from a production system.
