Monitoring Solution

Overview

In a 10-node cluster running production workloads alongside benchmarks, you need to know what is happening on every node at all times — which nodes are online, how much CPU they are using, whether memory is getting tight, and whether services are healthy. Without monitoring, debugging a crashed benchmark or a failing pod is guesswork.

We deployed a standard cloud-native monitoring stack: Node Exporter runs on every node and exposes hardware metrics. Prometheus scrapes those metrics every 10 seconds and stores them as time-series data. Grafana reads from Prometheus and renders interactive dashboards. The EdgeGuard backend also queries Prometheus directly to feed real-time data to the React dashboard.

The Monitoring Stack — How It All Connects

Three components work together. Think of it as a pipeline: collect → store → visualize.

Component 1 — Node Exporter

Node Exporter is a lightweight agent that runs on every single node in the cluster (all 10 — Pi5, Pi4, and all 8× Pi3s). It reads hardware and OS metrics directly from the Linux kernel and exposes them as an HTTP endpoint on port 9100. Prometheus then scrapes this endpoint.

Node Exporter was deployed as a systemd service on each node so it starts automatically on boot and restarts if it crashes.

# SSH into any node and check status
ssh admin@10.10.10.21 "systemctl status node_exporter"

# Check the metrics endpoint directly
curl http://10.10.10.21:9100/metrics | head -20

# Example output lines:
node_cpu_seconds_total{cpu="0",mode="idle"} 12345.67
node_memory_MemAvailable_bytes 456789012
node_thermal_zone_temp{zone="0"} 42900  ← temperature in millidegrees

Component 2 — Prometheus

Prometheus is the central metrics collector. It runs as a k3s Deployment on the Pi5 and scrapes every node's Node Exporter endpoint every 10 seconds. All scraped data is stored as time-series in Prometheus's local storage — meaning you can query not just current values but also historical trends (e.g. "what was CPU usage 30 minutes ago?").

The key configuration is the scrape config — a list of all nodes Prometheus should collect metrics from, and how often.

global:
  scrape_interval: 10s     # scrape every 10 seconds
  evaluation_interval: 10s

scrape_configs:
  - job_name: 'node-exporter'
    static_configs:
      - targets:
        # Pi5 master node
        - '10.10.10.1:9100'
        # Pi4 sensor node
        - '10.10.10.40:9100'
        # Pi3 worker nodes
        - '10.10.10.21:9100'
        - '10.10.10.22:9100'
        - '10.10.10.23:9100'
        - '10.10.10.24:9100'
        - '10.10.10.25:9100'
        - '10.10.10.26:9100'
        - '10.10.10.27:9100'
        - '10.10.10.28:9100'

# Check pod status
kubectl get pods -A | grep prometheus

# Check all targets are UP (all 10 nodes should show UP)
curl http://localhost:9090/api/v1/targets | python3 -m json.tool | grep -E '"health"|"job"'

Component 3 — Grafana

Grafana is the visualization layer. It runs as a k3s Deployment on Pi5 and connects to Prometheus as a data source. We configured pre-built dashboards showing per-node CPU, RAM, temperature, and uptime. The dashboards auto-refresh every 10 seconds matching the Prometheus scrape interval.

Grafana is deployed behind a NodePort service making it accessible on the cluster network. The EdgeGuard frontend Monitoring page embeds a direct link to the Grafana dashboard.

# Check pod status
kubectl get pods -A | grep grafana

# Check service and NodePort
kubectl get svc -A | grep grafana

What is Monitored

Node Exporter exposes hundreds of metrics but we focus on the ones that matter for a Raspberry Pi cluster running benchmarks and AI inference.

Integration with EdgeGuard Dashboard

Prometheus is not just for Grafana — our backend queries it directly via the Prometheus HTTP API to feed real-time data into the EdgeGuard React frontend. This means the monitoring data appears in our own dashboard, not just in Grafana.

Backend /api/system/status Endpoint

The Flask backend exposes a /api/system/status endpoint that queries Prometheus and returns per-node CPU and RAM in a format the React frontend can display. This powers the live node grid on the Monitoring page.

# Backend queries Prometheus HTTP API
# Prometheus runs at http://prometheus-service:9090

import requests

def get_node_cpu(node_ip):
    # PromQL query: average CPU usage over last 1 minute
    query = f'100 - (avg by (instance) '
            f'(rate(node_cpu_seconds_total{{mode="idle",instance="{node_ip}:9100"}}[1m])) * 100)'

    response = requests.get(
        'http://prometheus-service:9090/api/v1/query',
        params={'query': query}
    )
    result = response.json()['data']['result']
    return float(result[0]['value'][1]) if result else 0

{
  "nodes": [
    {
      "name": "pi3-01",
      "ip": "10.10.10.21",
      "status": "online",
      "cpu": 6.2,       ← CPU usage %
      "ram": 43.8,      ← RAM usage %
      "uptime": "2d 4h"
    },
    // ... all 10 nodes
  ],
  "services": [
    { "name": "Detection Service", "status": "running" },
    { "name": "Backend API",       "status": "running" },
    { "name": "Prometheus",        "status": "running" },
    { "name": "Grafana",           "status": "running" }
  ]
}

How k3s Keeps Everything Running

Both Prometheus and Grafana are deployed as k3s Deployments — not just standalone processes. This means k3s automatically restarts them if they crash, reschedules them if a node goes down, and keeps them running across reboots. You do not need to manually start Prometheus or Grafana after a reboot — k3s handles it.

# All monitoring pods should show Running
kubectl get pods -A | grep -E "prometheus|grafana|node-exporter"

# Check node exporter on all Pi3s
for ip in 10.10.10.21 10.10.10.22 10.10.10.23 10.10.10.24 \
          10.10.10.25 10.10.10.26 10.10.10.27 10.10.10.28; do
    echo -n "$ip node_exporter: "
    ssh admin@$ip "systemctl is-active node_exporter"
done

Dashboard Screenshots

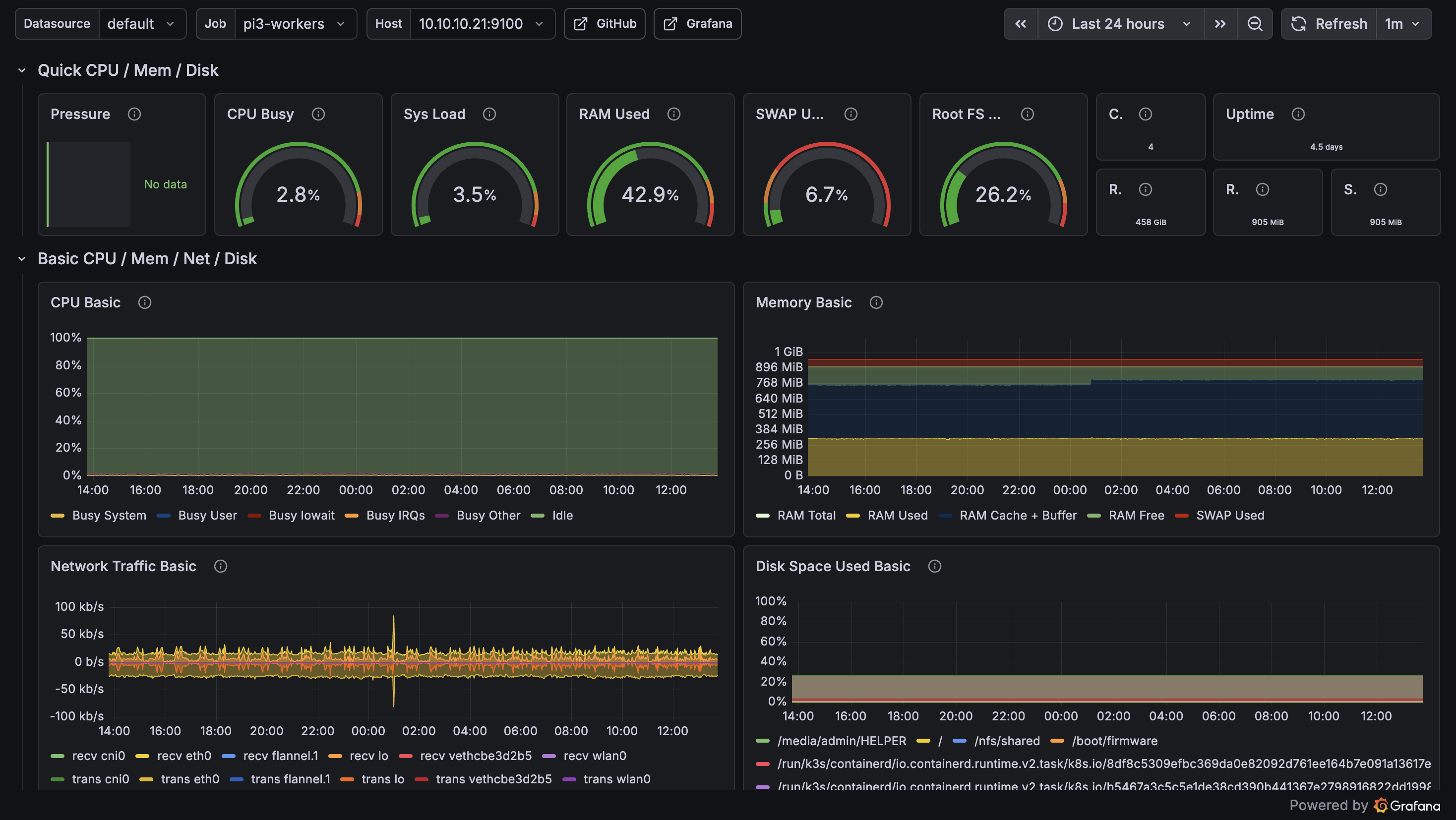

📊 grafana_dashboard.png Grafana — Per-node CPU, RAM, Temperature Dashboard

Figure 1 — Grafana dashboard showing all 10 nodes with CPU usage, RAM, and temperature metrics.

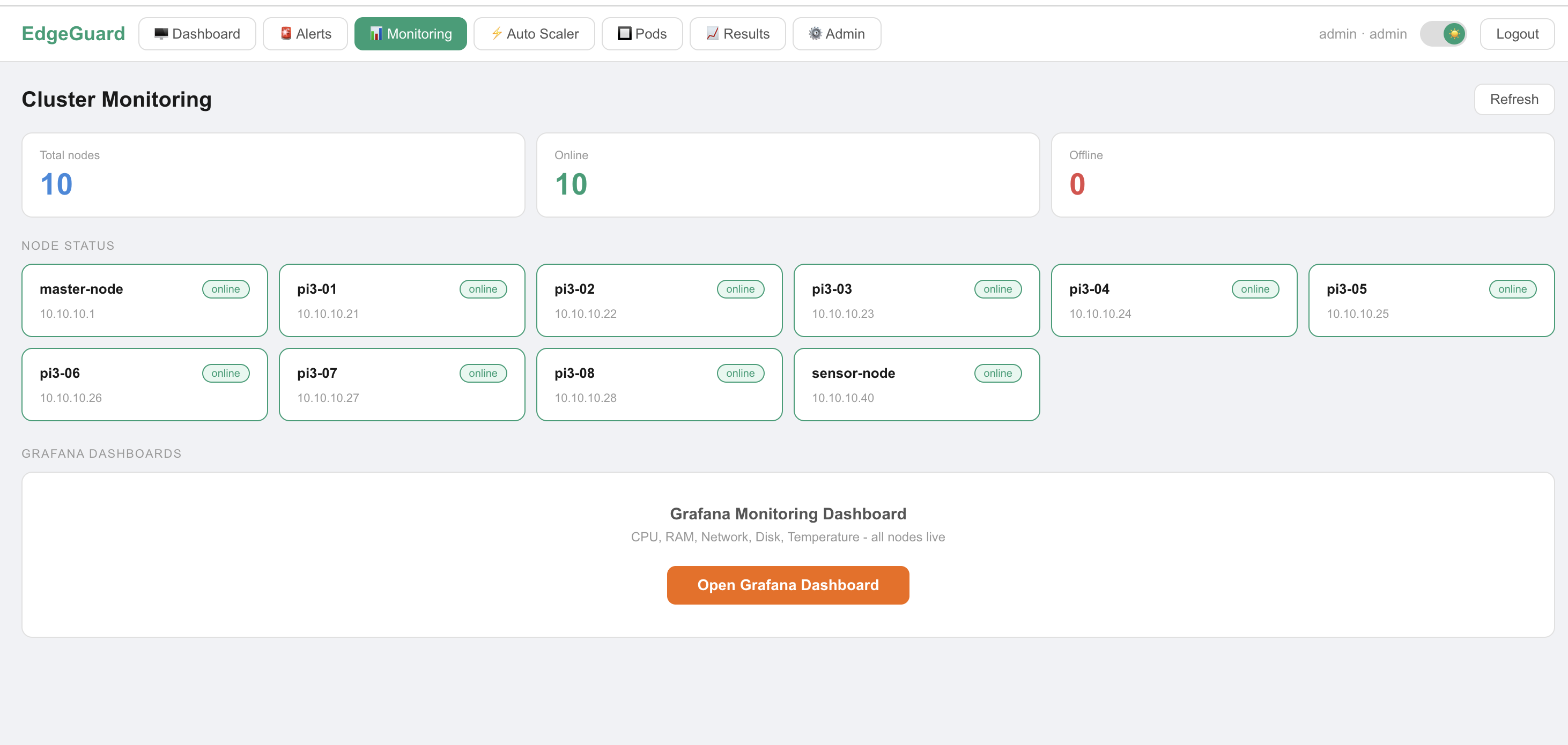

🖥️ edgeguard_node_grid.png EdgeGuard Dashboard — Live Node Health Grid

Figure 2 — EdgeGuard Monitoring page showing live per-node status powered by Prometheus data.

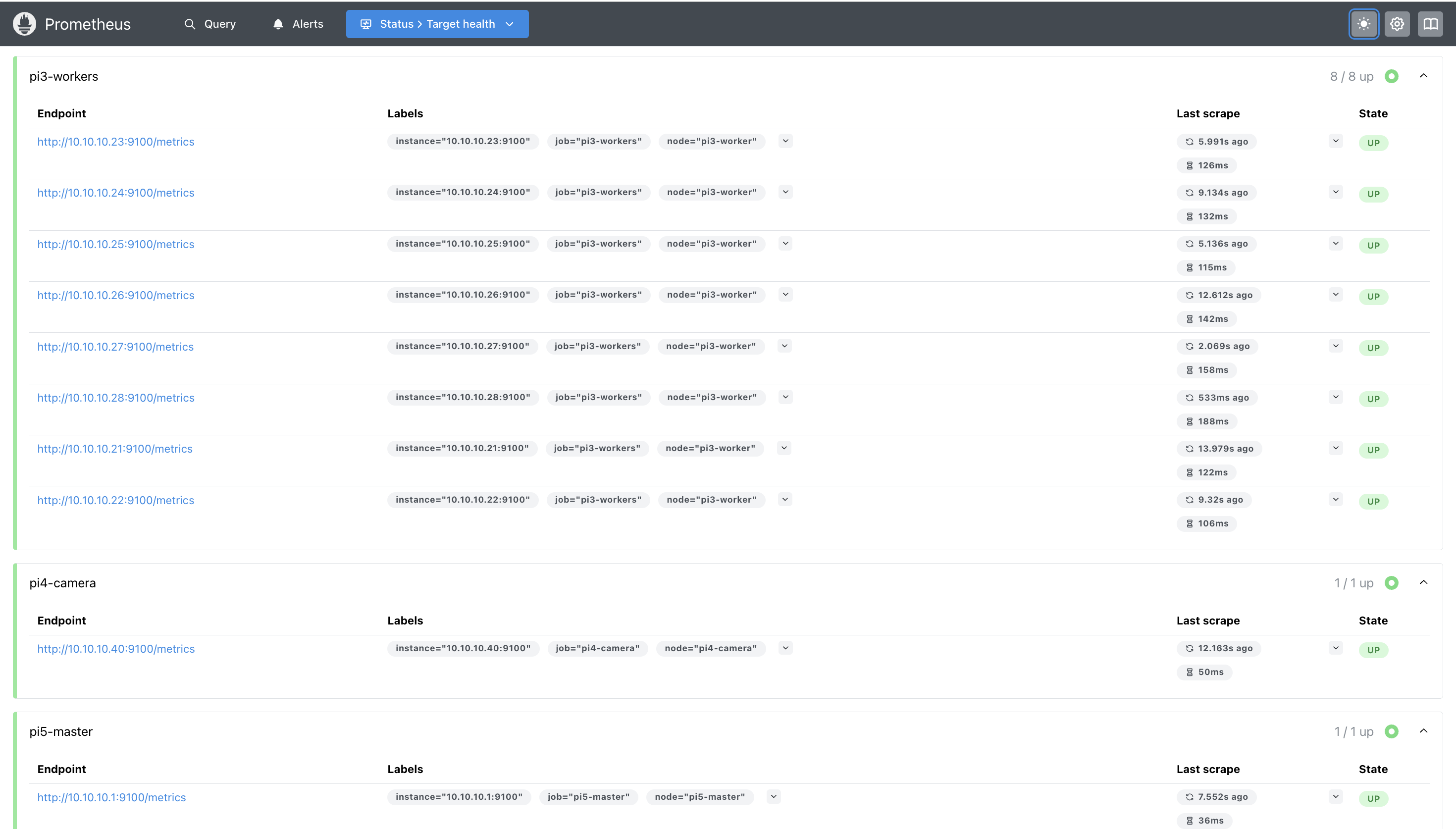

🎯 prometheus_targets.png Prometheus Targets Page — All 10 nodes showing UP status

Figure 3 — Prometheus targets page confirming all 10 node exporters are reachable and scraping successfully.
